Determinant from Elementary Matrices

A visual note on determinant as signed area and volume scaling under elementary row operations

The determinant of a square matrix measures the signed scaling factor of area in 2D, volume in 3D and n-dimensional volume in general. Row operations reveal this scaling because each elementary operation changes determinant in a controlled way.

These diagrams show how determinant can be tracked by starting with the unit square or unit cube and then applying inverse elementary matrices from right to left.

Explore more on GraphMath Linear Algebra

Visual construction

The two previews show the same idea in 2D and 3D. Click either preview to open the full-size image.

Signed area in 2D

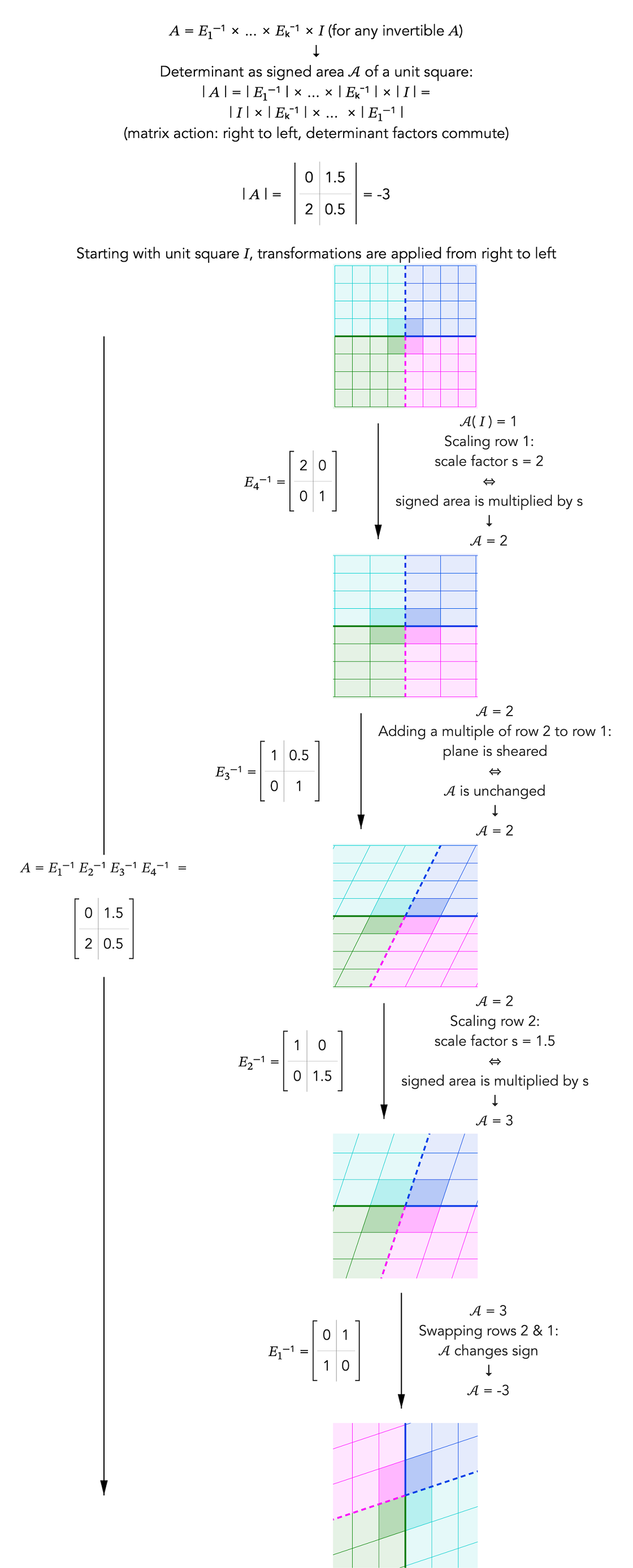

The 2D diagram starts with the unit square and tracks how row scaling, row replacement and row swapping change signed area. The determinant is read as the final signed area factor.

2D determinant illustration showing signed area transformation from elementary matrices and row operations.

Signed volume in 3D

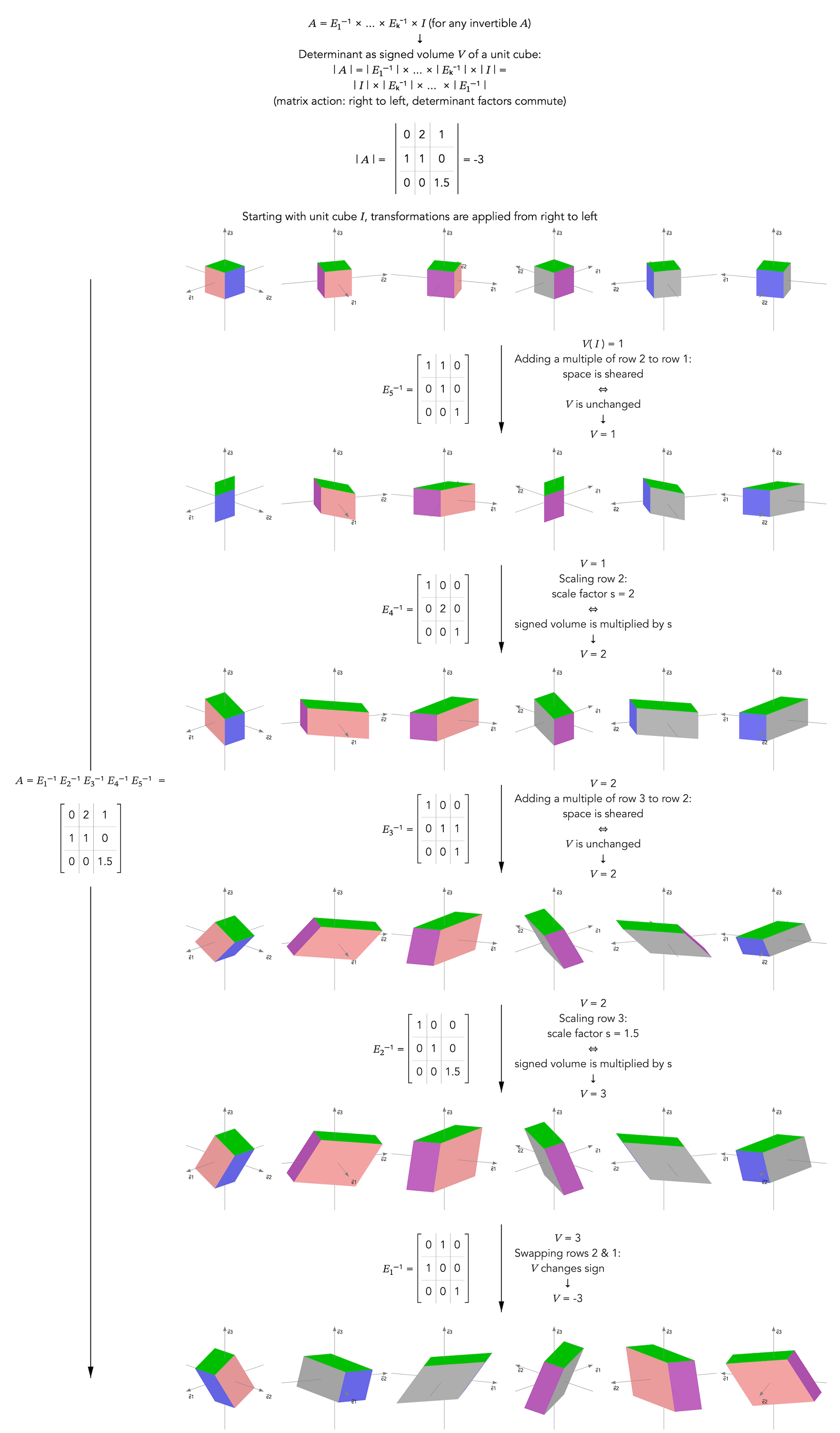

The 3D diagram starts with the unit cube and tracks how elementary transformations shear, scale and reorient the cube. The determinant is read as the final signed volume factor.

3D determinant illustration showing signed volume transformation from elementary matrices and row operations.

Concept

An elementary row replacement shears the shape and leaves area or volume unchanged. Scaling one row multiplies area or volume by the same scale factor. Swapping rows reverses orientation, so the determinant changes sign.

Because an invertible matrix can be factored into elementary matrices, its determinant can be understood as the accumulated signed scaling produced by those elementary steps.

Structure

Matrix products act right to left, so the visual construction starts from the unit square or unit cube and applies the inverse elementary matrices in the order shown. The determinant factors commute as numbers, even though the matrix transformations themselves are applied in order.

This separates the geometric action from the scalar bookkeeping: the shape changes step by step, while the determinant records the product of the signed scaling factors.

Key equations

|AB| = |A||B|
|I| = 1
row replacement: determinant unchanged
row scaling by c: determinant multiplied by c
row swap: determinant changes sign
|A| = |E₁⁻¹| × ... × |Eₖ⁻¹| × |I|

The equations express the same bookkeeping shown geometrically in the two diagrams.
